Switch
Part
|
Snap action / Push - on type
|
|
Power Rating
|
20mA 15 VDC
|
|
Electrical
|
Contact
Resistance
|
50
mOhm max.
|
|
Insulation Resistance
|
50
MOhm min.(at 100V DC)
|
|
Dielectric
Withstanding Voltage
|
250
VAC for 1 minute
|
|
Bouncing
|
3
ms max.(ON)
8
ms max (OFF)
|
|
Mechanical
|
Operating Force
|
A:130+-30
gf
B:160+-30
gf
C:180+-30
gf
D:250+-30
gf
|
|
Push
Travel
|
0.25+-0.10
mm
|
|
Endurance
|
Operating Life
|
100,000
cycles min.
(Upgrade
Type : 500,000 cycles min.)
|
|
Operating Temperature
|
-20
to +70 Celsius
|
|
Storage
Temperature
|
-40
to +80 Celsius
|
|
|
 |
|
|
 |
|
|
 |
| |
|
| |
ENGLAND,
SINGAPORE, HONGKONG, U.S.A. and
CHINA |
| |
|
|
 |
| |
|
| |
Push
Travel 0.25 mm , Clear Click Feeling
Operating Button Switch for Monitor,O.A.
Communication Equipment

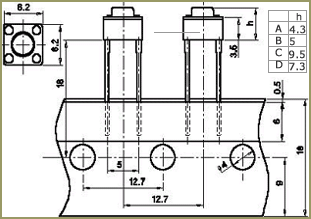

Packing Specifications for Radial
Taping Based on Int'l Standard
Adopted
Excellent Perfect Preventing Flux
Full automated assembly lines
Unmatched the longest life cycle
(1,000K)
Full automated assembly lines
Superior quality through continuous
R.& D.
|
| |
|
|
| |
|
|
|
|
|
